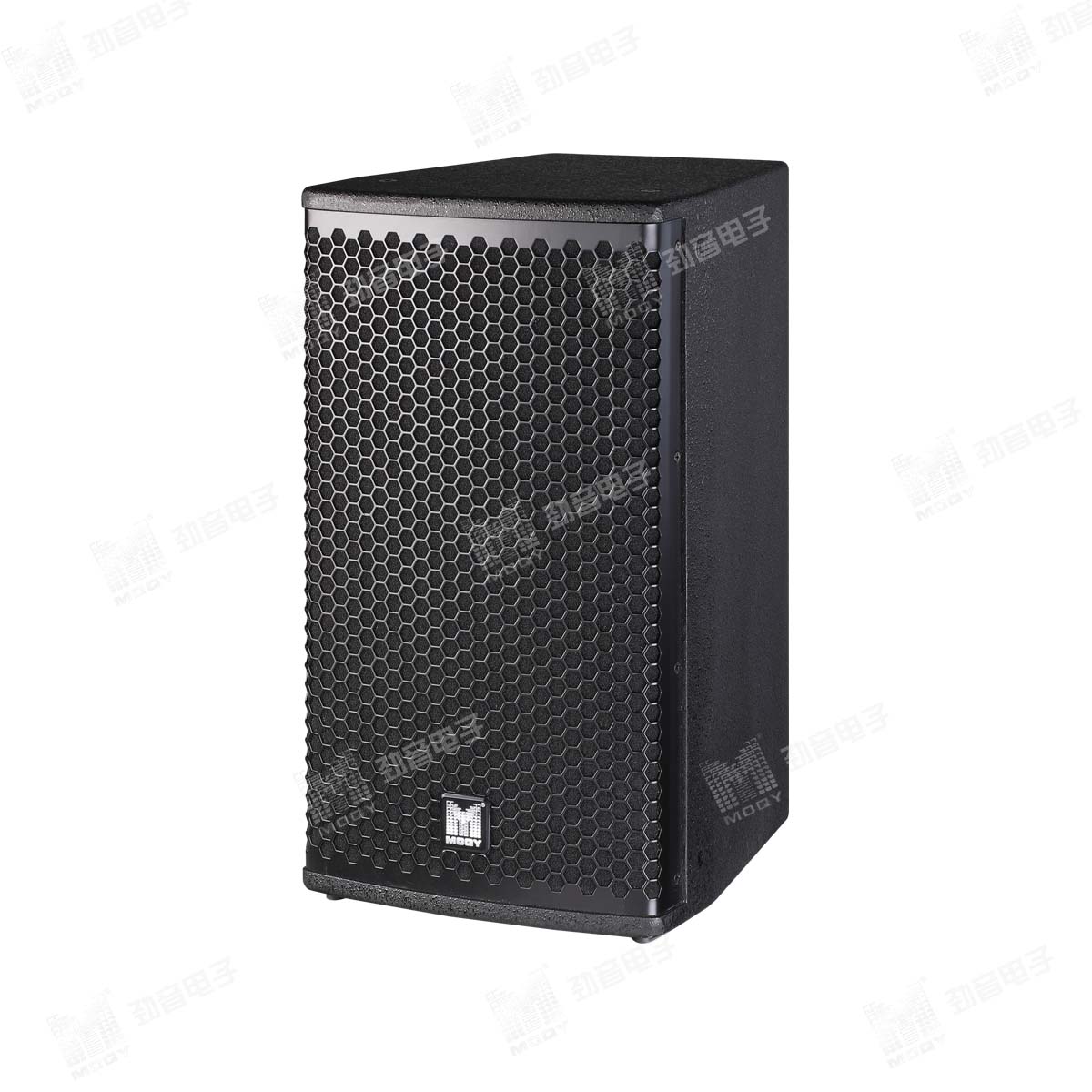

Technial Parameter
LF Unit: 1x10＂(50mm) Driver Unit
HF Unit: 1x34 mm Driver Unit
Power: 300W(RMS) 600W(PEAK)
Frequency Response: 46Hz-20KHz (-3dB)
Sensitivity: 96dB/1W/1M
Max. SPL: 114dB(RMS) 120dB(PEAK)
Nominal Impedance: 8Ω
Cover Range: 70°× 60°(H×V)
Hanging Hardware: 12 x M8 screws hanging point
Handle: 2
Bracket fixed seat: 35mm base bracket hole
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 14.5Kg
Size: (W x D x H) : 300x347x534mm
