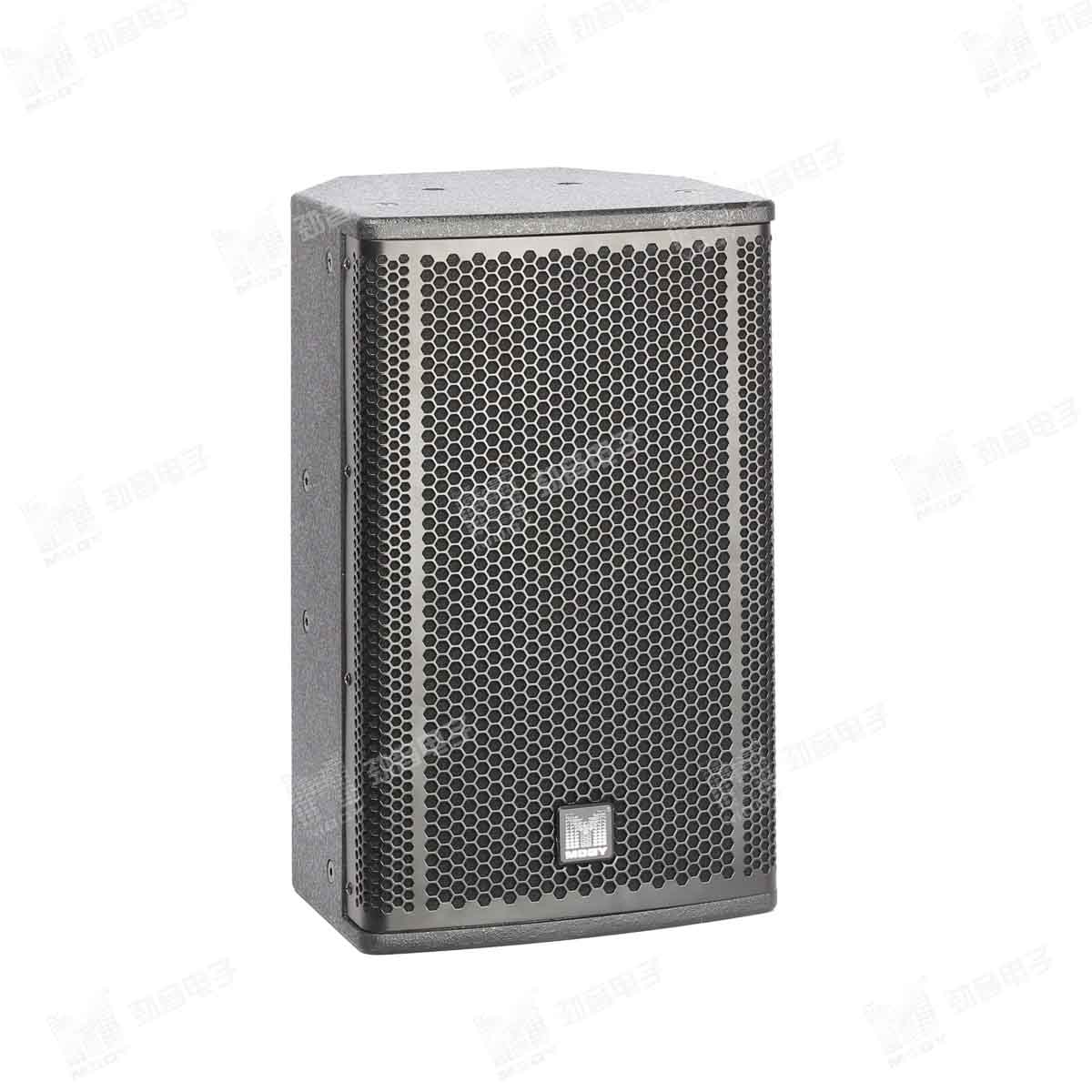

F-10

F-10

Power 250W(RMS) 500W(PEAK)

Frequency Response 52Hz-20KHz

Sensitivity 95dB/1W/1M

Nominal Impedance 8Ω

Technial Parameter
LF Unit: 1x10＂(65mm) Driver Unit
HF Unit: 1x34 mm Driver Unit
Power: 250W(RMS) 500W(PEAK)
Frequency Response: 52Hz-20KHz (-3dB)
Sensitivity: 95dB/1W/1M
Max. SPL: 120dB(RMS) 126dB(PEAK)
Nominal Impedance: 8Ω
Cover Range: 90°× 50°(H×V)
Hanging Hardware: 8 x M8 Hanging hole
Handle: /
Bracket fixed seat: 35mm Bracket fixed seat
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 13.9KG
Size(W×D×H）：295X293X510mm
Applications
F-10

Outdoor Mini-performances

F-10

Church

F-10

Deluxe Bar

F-10

Deluxe Bar
