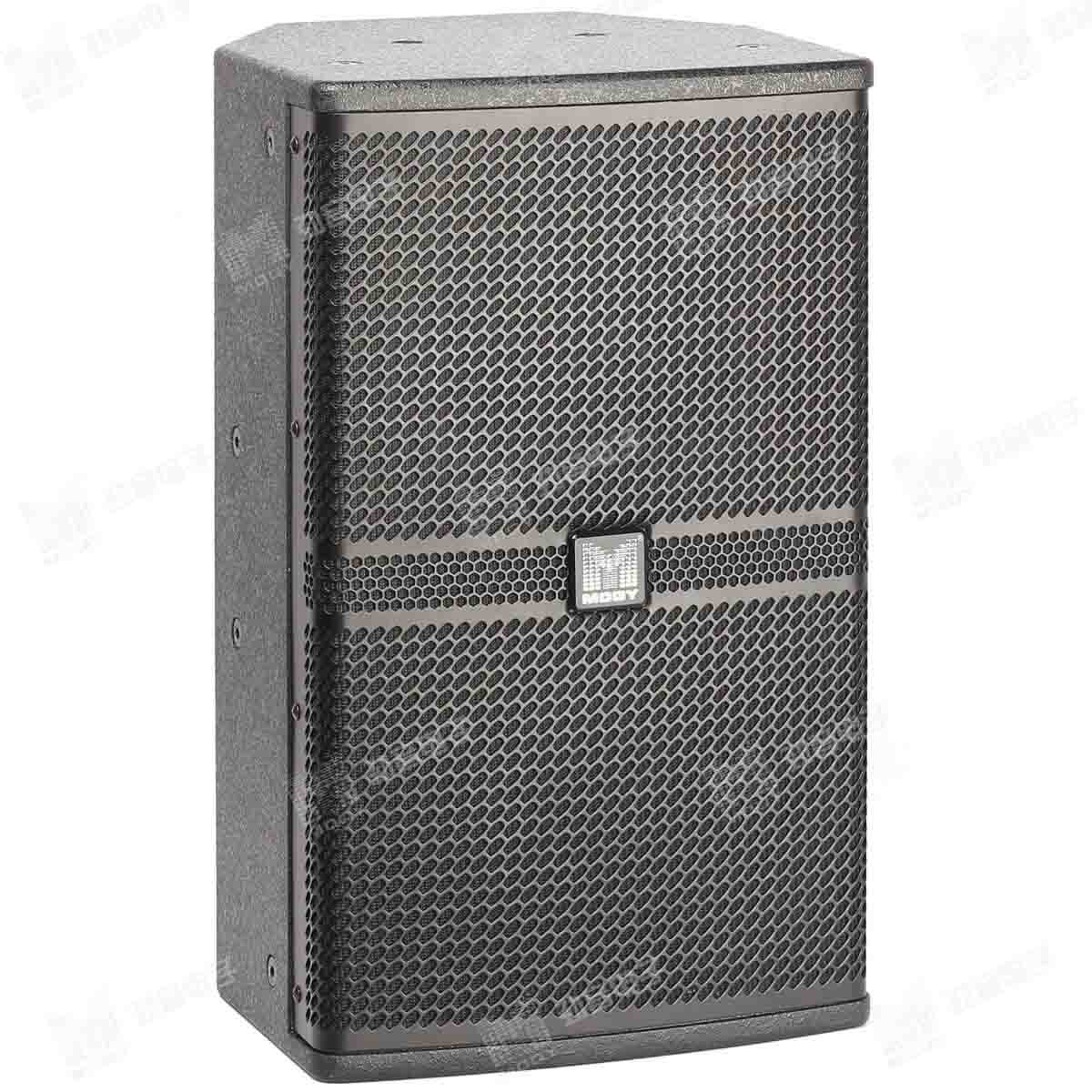

R-10

R-10

Power 300W(RMS) 600W(PEAK)

Frequency Response 59Hz-20KHz

Sensitivity 96dB/1W/1M

Nominal Impedance 8Ω

Technial Parameter
LF Unit: 1x10＂(65mm) Driver Unit
HF Unit: 1x44 mm Driver Unit
Power: 300W(RMS) 600W(PEAK)
Frequency Response: 59Hz-20KHz (-3dB)
Sensitivity: 96dB/1W/1M
Max. SPL: 127dB(RMS) 133dB(PEAK)
Nominal Impedance: 8Ω
Cover Range: 60°× 40°(H×V)
Hanging Hardware: 8 x M8 Hanging hole
Handle: /
Bracket fixed seat: 35mm Bracket fixed seat
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density poplar plywood
Weight: KG
Size(W×D×H）：mm
Applications
R-10

Outdoor Mini-performances

R-10

Church

R-10

Deluxe Bar

R-10

Deluxe Bar
