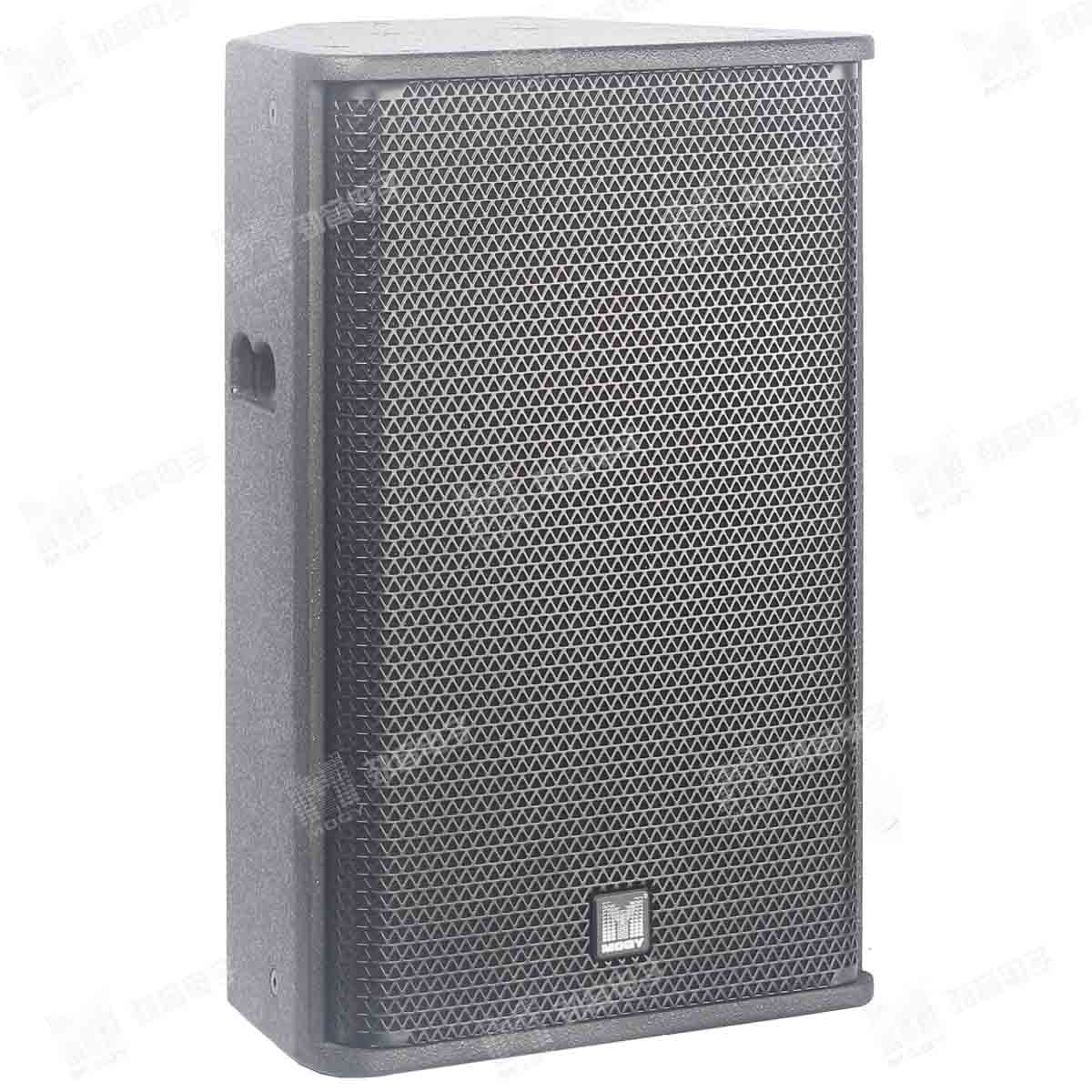

PS-12

PS-12

Power 250W(RMS) 500W(PEAK)

Frequency Response 55Hz-20KHz

Sensitivity 102dB/1W/1M

Nominal Impedance 8Ω

Technial Parameter
LF Unit: 1x12＂(65mm) Driver Unit
HF Unit: 1x34 mm Driver Unit
Power: 250W(RMS) 500W(PEAK)
Frequency Response: 55Hz-20KHz (-3dB)
Sensitivity: 102dB/1W/1M
Max. SPL: 126dB(RMS) 132dB(PEAK)
Nominal Impedance: 8Ω
Cover Range: 50°-100°× 55°(H×V)
Hanging Hardware: 8 x M8 Hanging hole
Handle: 2
Bracket fixed seat: 35mm Bracket fixed seat
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 16KG
Size(W×D×H）：390X335X619mm
Applications
PS-12

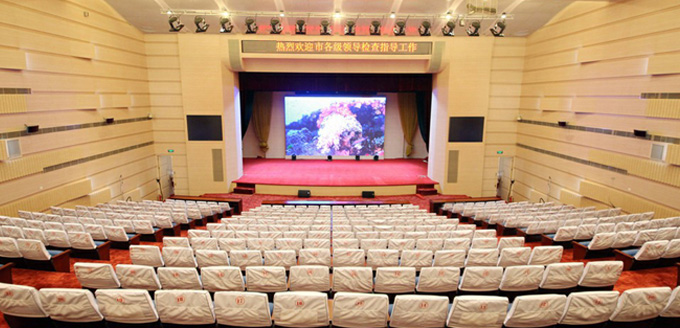

Lecture Hall

PS-12

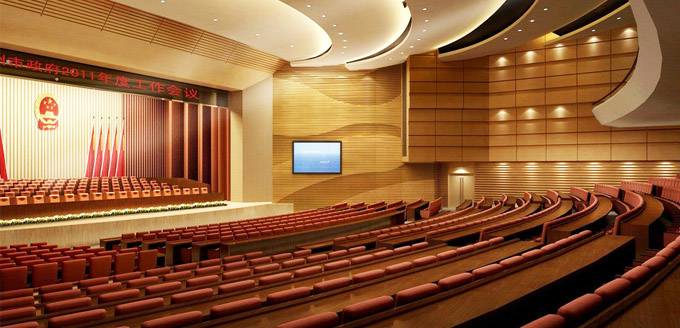

Assembly Hall

PS-12

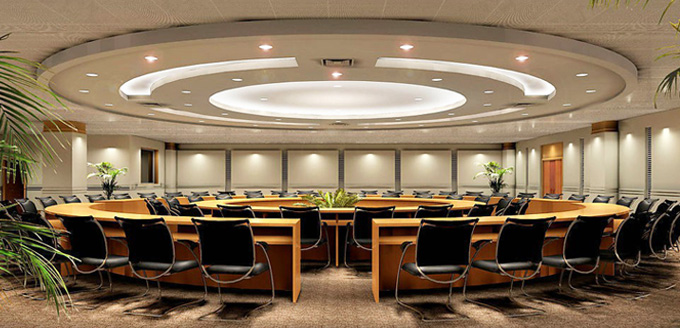

Meeting Room

PS-12

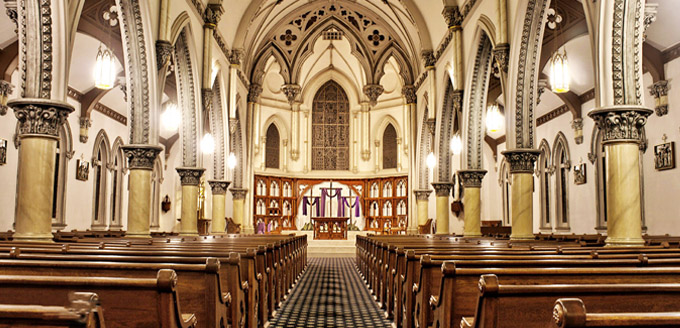

Church
