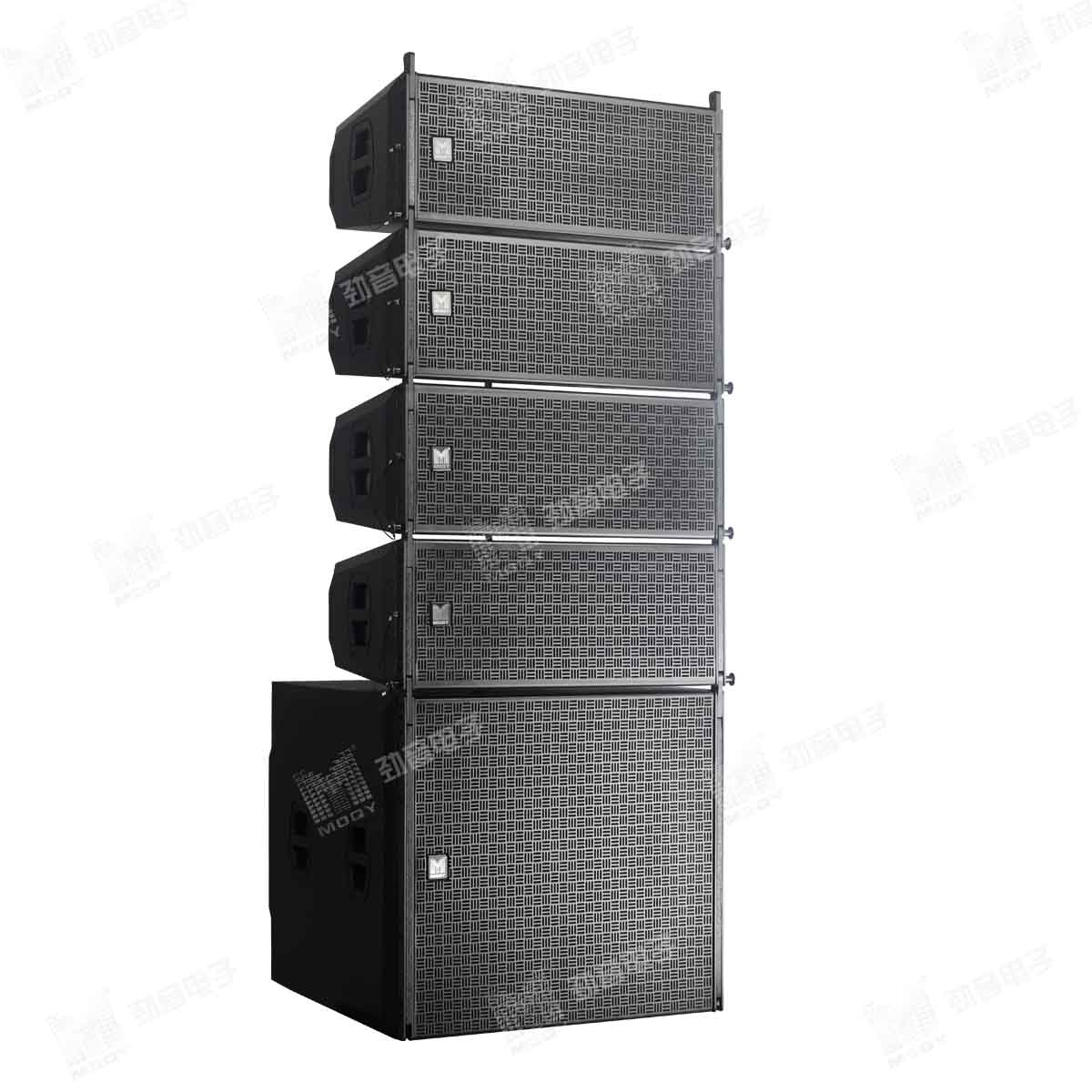

2x8” two-way line array system
Technial Parameter

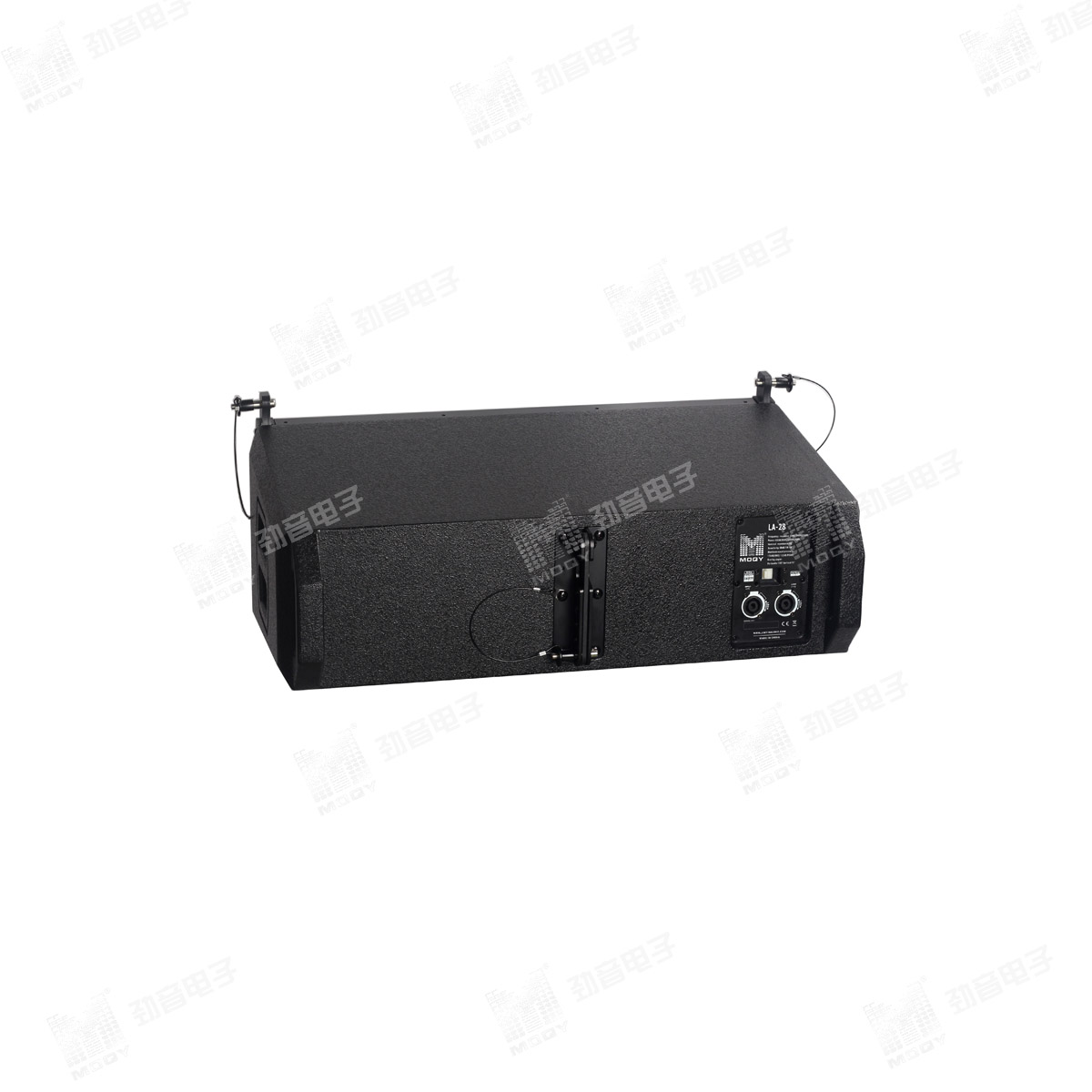

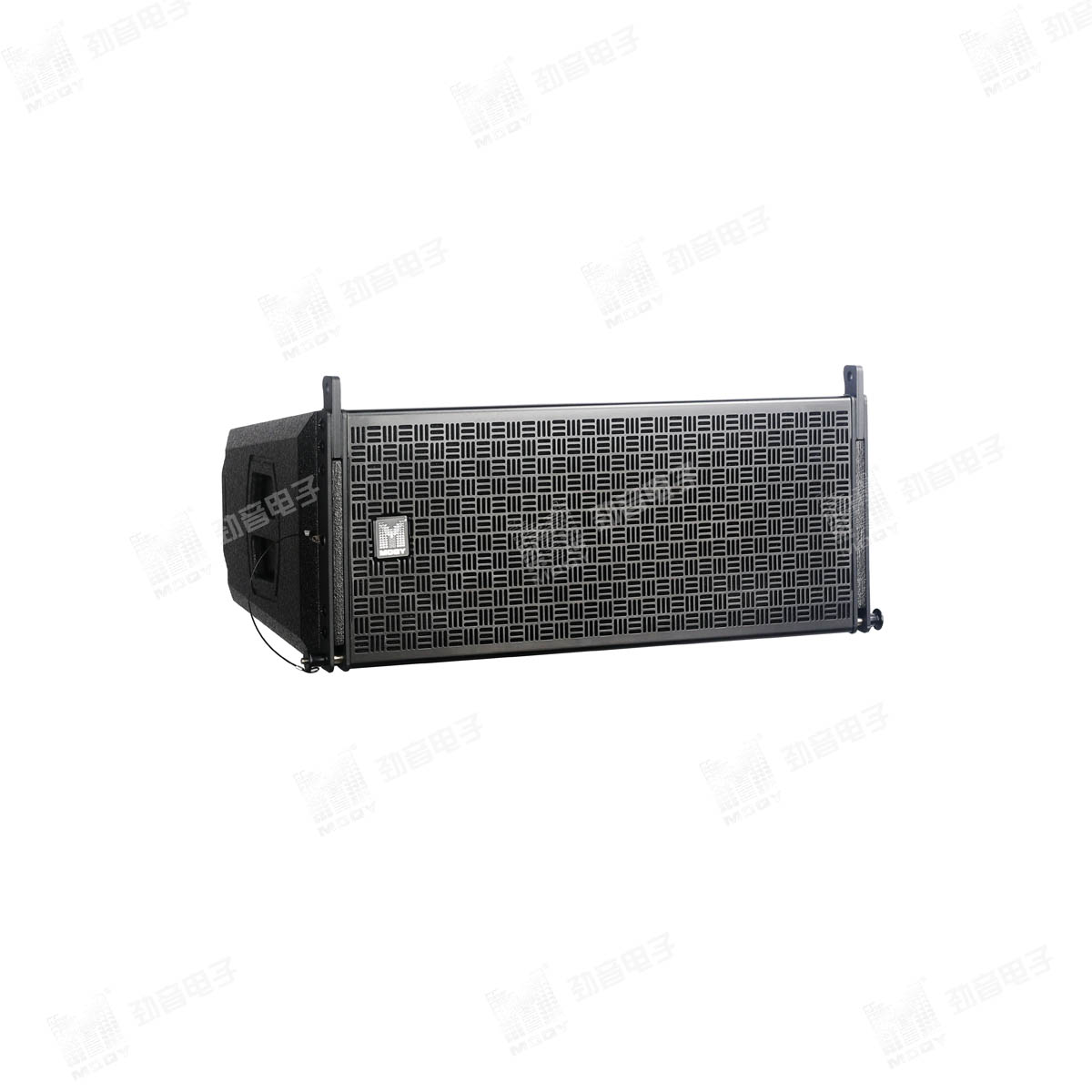

LA-28
LF Unit: 2x8"（65mm）Driver Unit
HF Unit: 1x75mm Neodymium Driver Unit
Power: 600W (RMS) 1200W (PEAK)
Frequency Response: 55Hz-20KHz (±3dB)
Sensitivity: 98dB / 1W / 1M
Max. SPL: 126dB (RMS) 132dB (PEAK)
Nominal Impedance: 8Ω
Cover Range: 110°x15°（H x V）
Hanging Hardware: Bracket
Handle: 2
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 22.5kg
Size(W×D×H）: 680x370x275mm

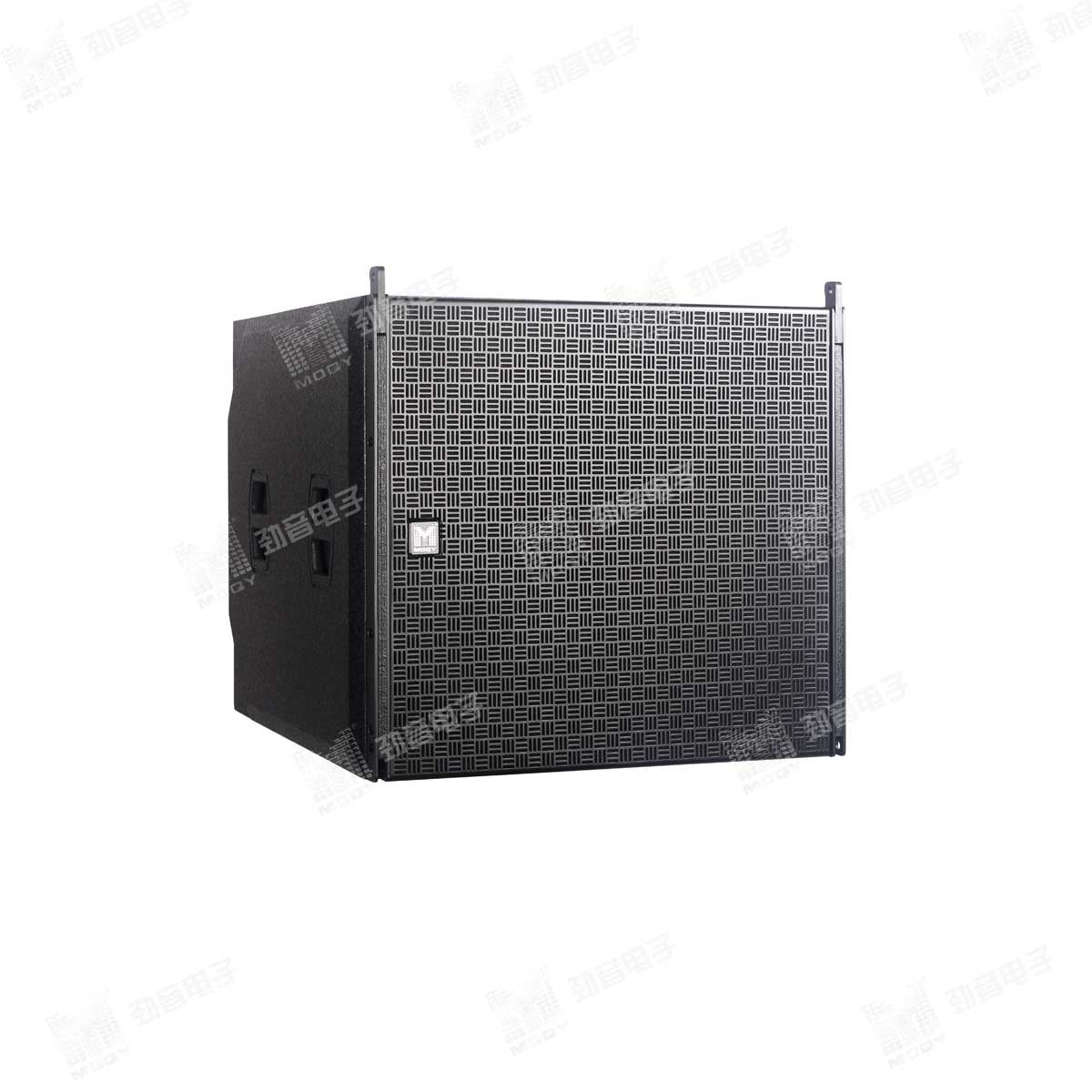

LA-28S
LF Unit: 1x18"（100mm）Line Array Subwoofer Unit
Power: 600W (RMS) 1200W (PEAK)
Frequency Response: 40Hz-300Hz (±3dB)
Sensitivity: 104dB / 1W / 1M
Max. SPL: 130dB (RMS) 136dB (PEAK)
Nominal Impedance: 8Ω
Hanging Hardware: Bracket
Handle: 4
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 51.4kg
Size(W×D×H）: 680x680x580mm
