Power 120W(RMS) 240W(PEAK)
Frequency Response 70Hz-20KHz
Sensitivity 96dB/1W/1M
Nominal Impedance 8Ω
Technial Parameter

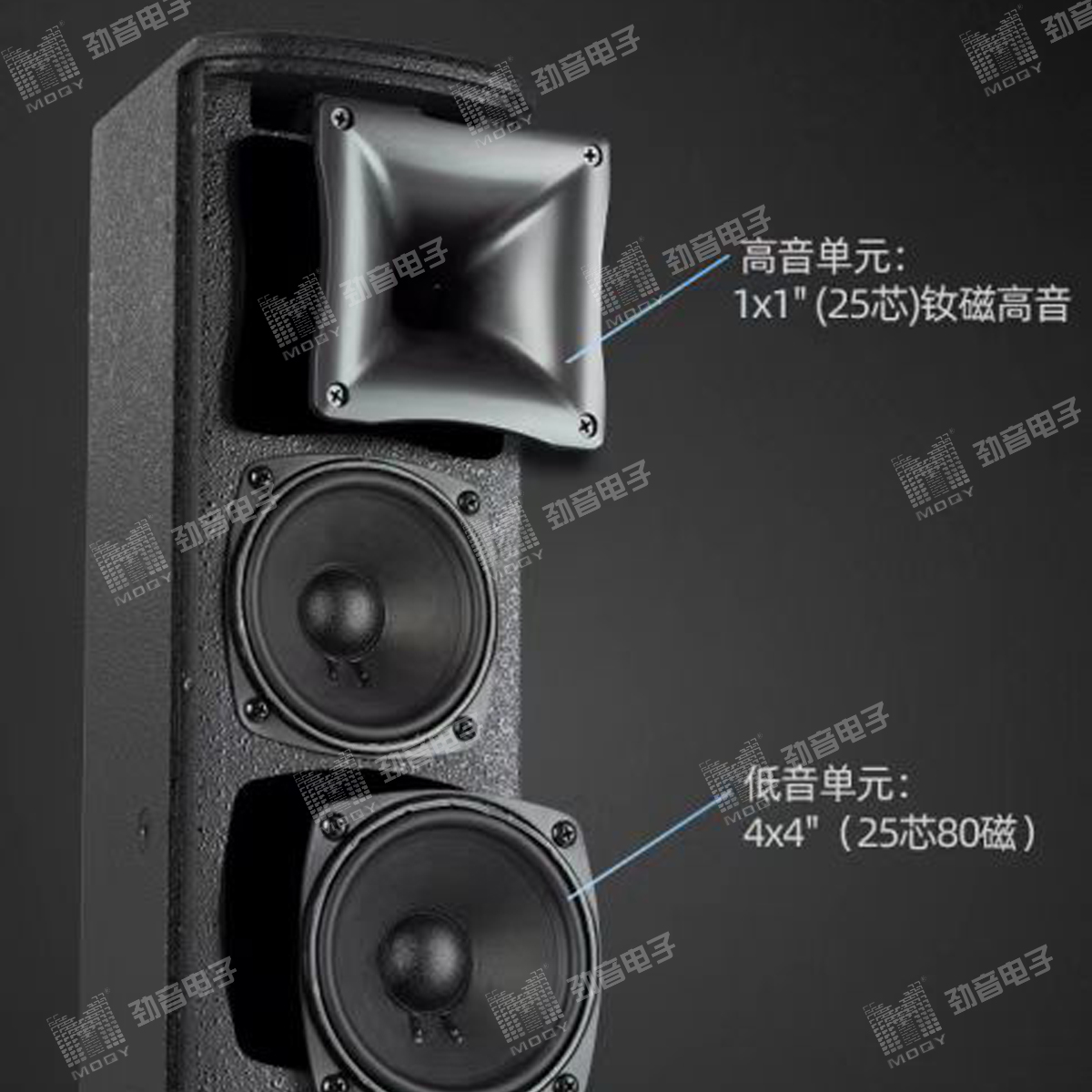

LF Unit: 2x4"(25mm)Driver Unit
HF Unit: 1x1"(25mm)Neodymium Driver Unit
Power: 120W (RMS) 240W (PEAK)
Frequency Response: 70Hz-20KHz(±3dB)
Sensitivity: 96dB / 1W / 1M
Max. SPL: 108dB (RMS) 114dB (PEAK)
Nominal Impedance: 8Ω
Cover Range: 80°× 30°(H×V)

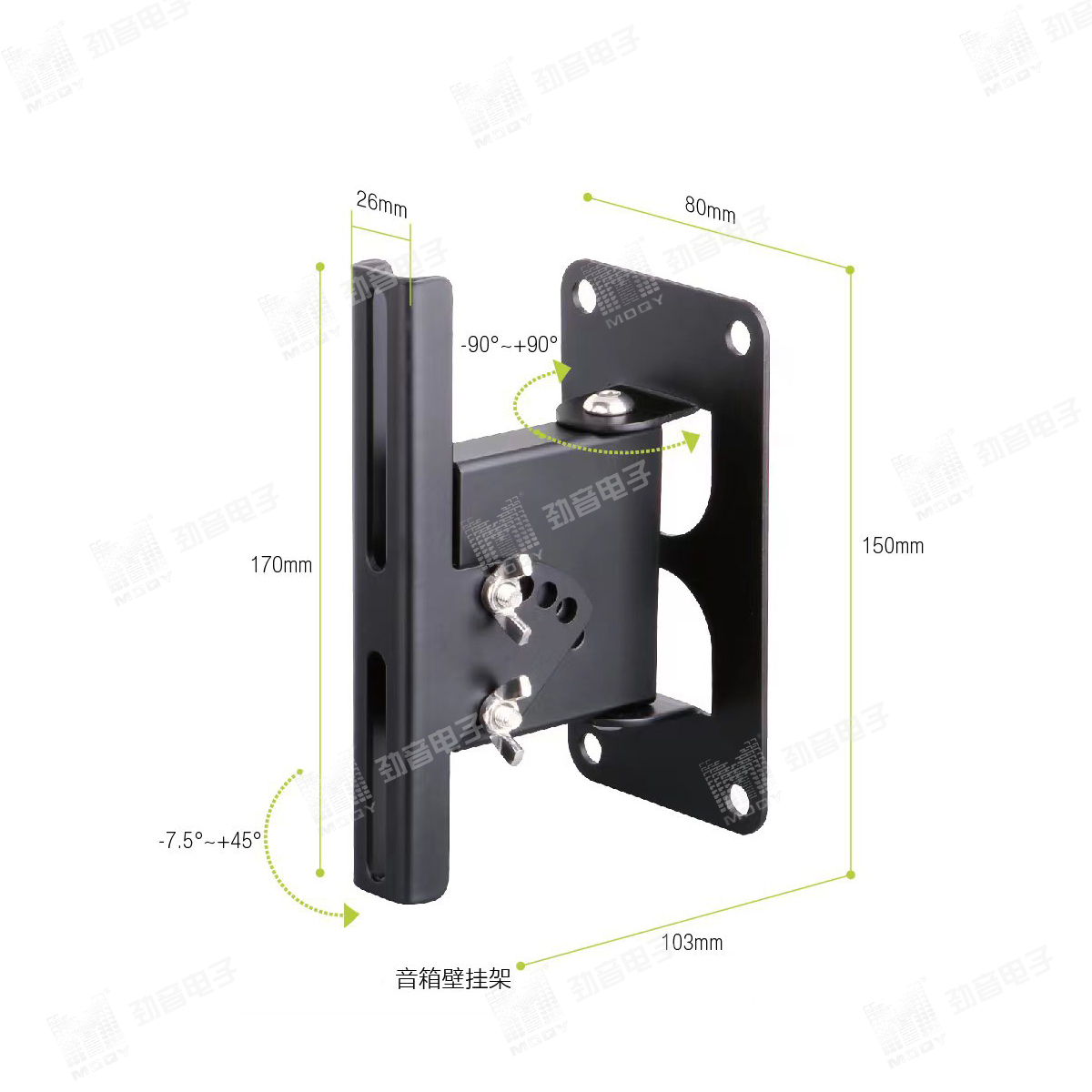

Hanging Hardware: 12 x M8 screws hanging point

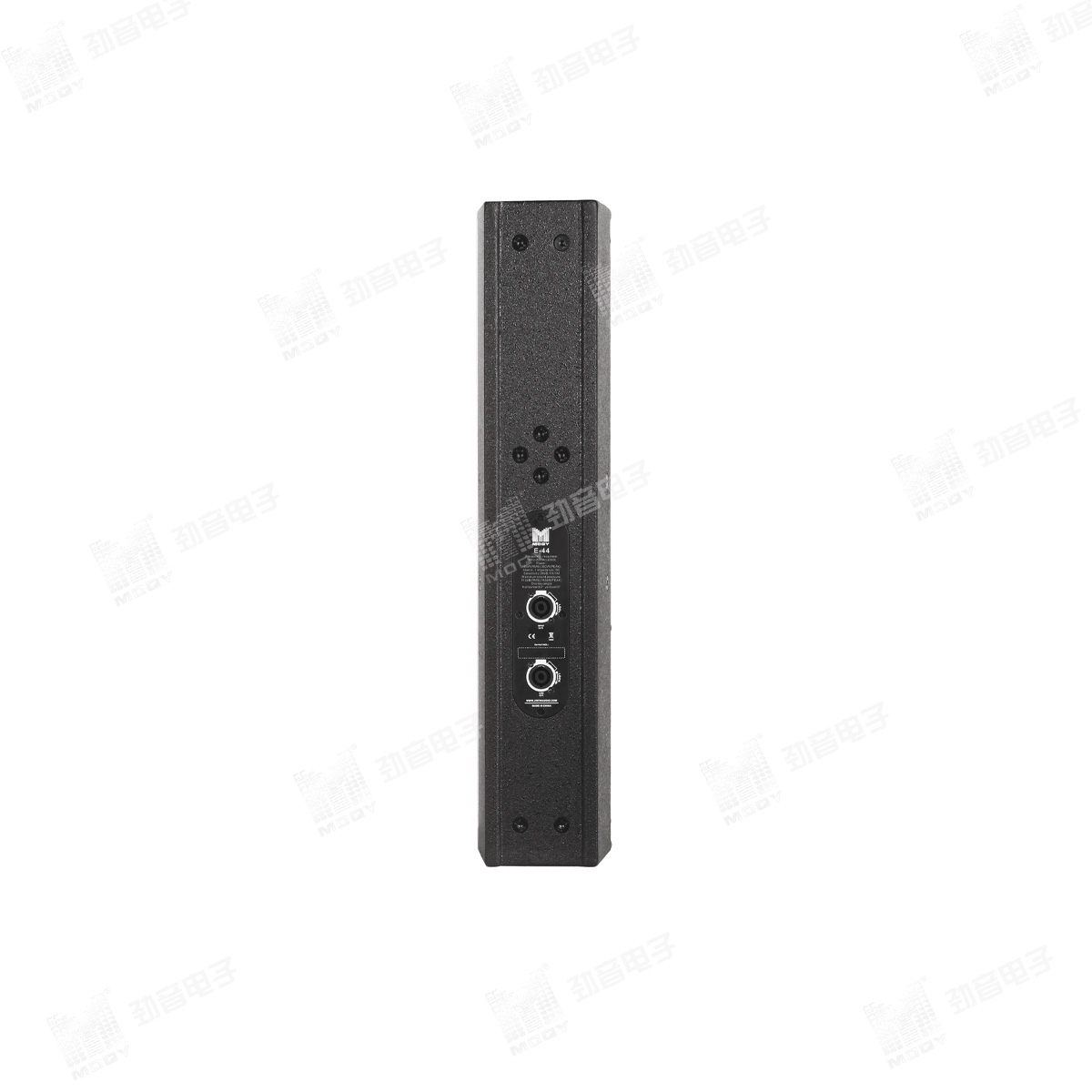

Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density poplar plywood
Weight: 3.8Kg
Size(W×D×H): 130x145x430mm
Lecture Hall
Background Music
Assembly Hall
Multi-Function Hall
Meeting Room
Cafe Shop
Mini-performances
Church
