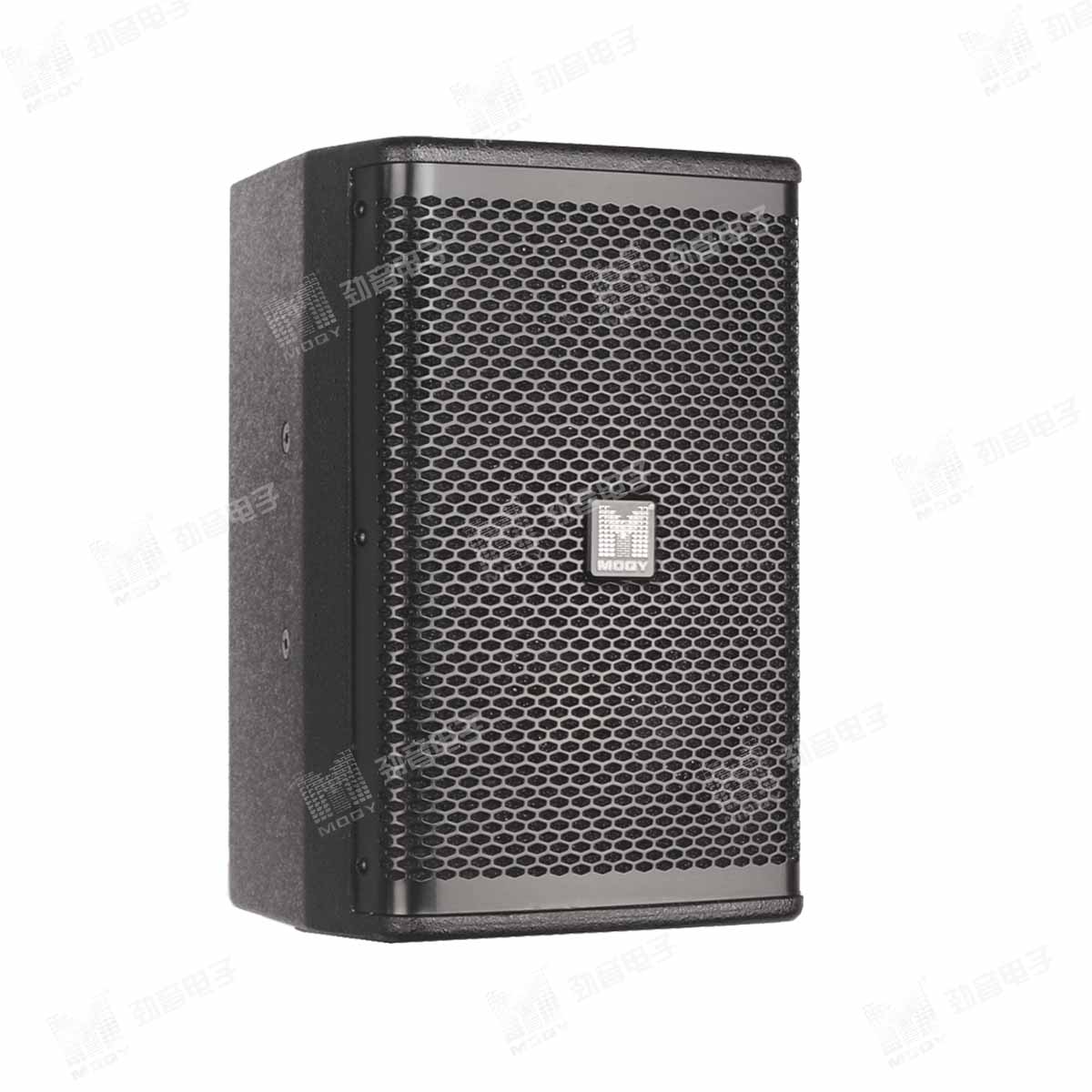

Power 150W(RMS) 300W(PEAK)
Frequency Response 60Hz-18KHz
Sensitivity 94dB/1W/1M
Nominal Impedance 8Ω
Technial Parameter
LF Unit: 1x8" Driver Unit
HF Unit: 1x25mm Driver Unit
Power: 150W(RMS) 300W(PEAK)
Frequency Response: 60Hz-18KHz(±3dB)
Sensitivity: 94dB / 1W / 1M
Max. SPL: 106dB (RMS) 112dB (PEAK)
Nominal Impedance: 8Ω
Hanging Hardware: 8 x M8 screws hanging point

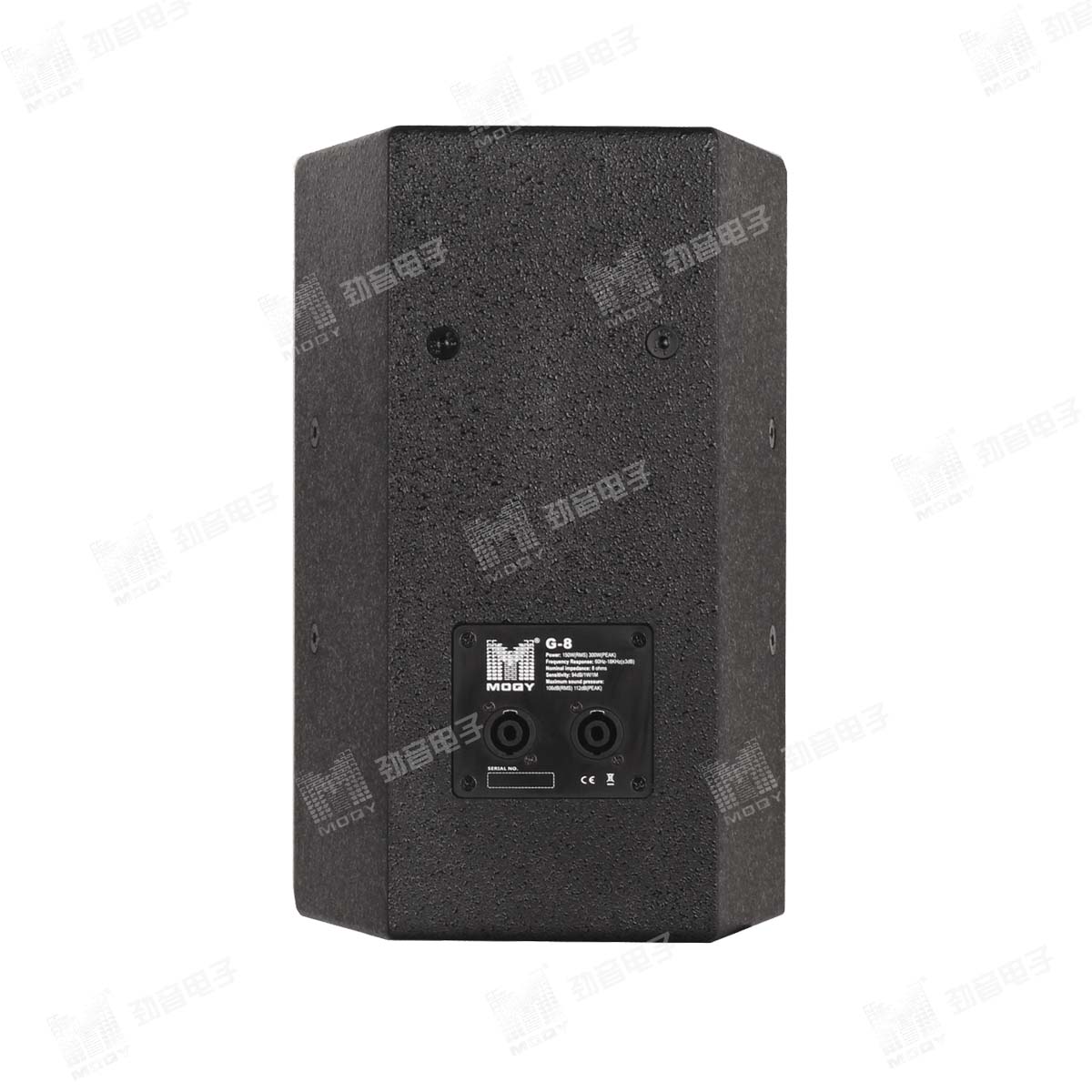

Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density fiberboard
Weight: 6.5Kg
Size(W×D×H): 240x253x377mm

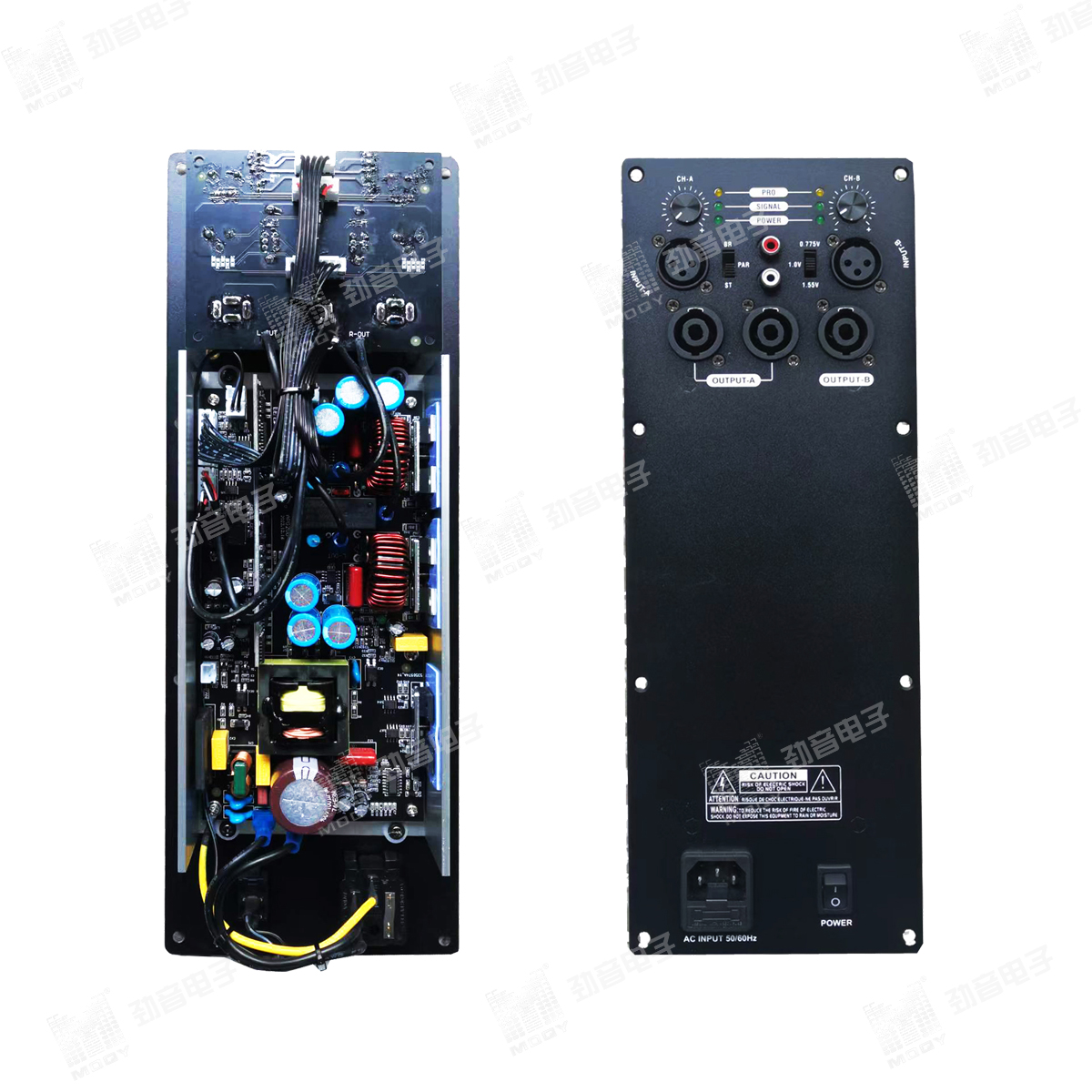

Rated Output Power: 8Ω Stereo 200W×2
Rated Output Power: 4Ω Stereo 350W×2
Power Requirements: AC220V
Output Level:Class-D 2 Channels
Harmonic Distortion(1kHz,8ohms) :<0.1%
Frequency Response:15Hz-20kHz: ±0.1dB (1W/8Ω)
Input Impedance:Input Impedance
Sensitivity: 0.775V
Signal to Noise Ratio:≥100dB
Damping Factor: (350:1,1Khz 8ohms)
Conversion Rate:28V/US
LED Indicators:Power/Signal/Distortion/Clipping
Input Connector:Balanced XLR Plug and Receptacle
Protection Function: Overheat, Short Circuit, DC Output
Lecture Hall
Multi-Function Hall
Meeting Room
Convenience Store
Supermarket
Cafe Shop
Sharon
Background Music
