Power 300W(RMS) 600W(PEAK)
Frequency Response 55Hz-20KHz
Sensitivity 97dB/1W/1M
Nominal Impedance 8Ω
2x5” two-way line array system
Technial Parameter

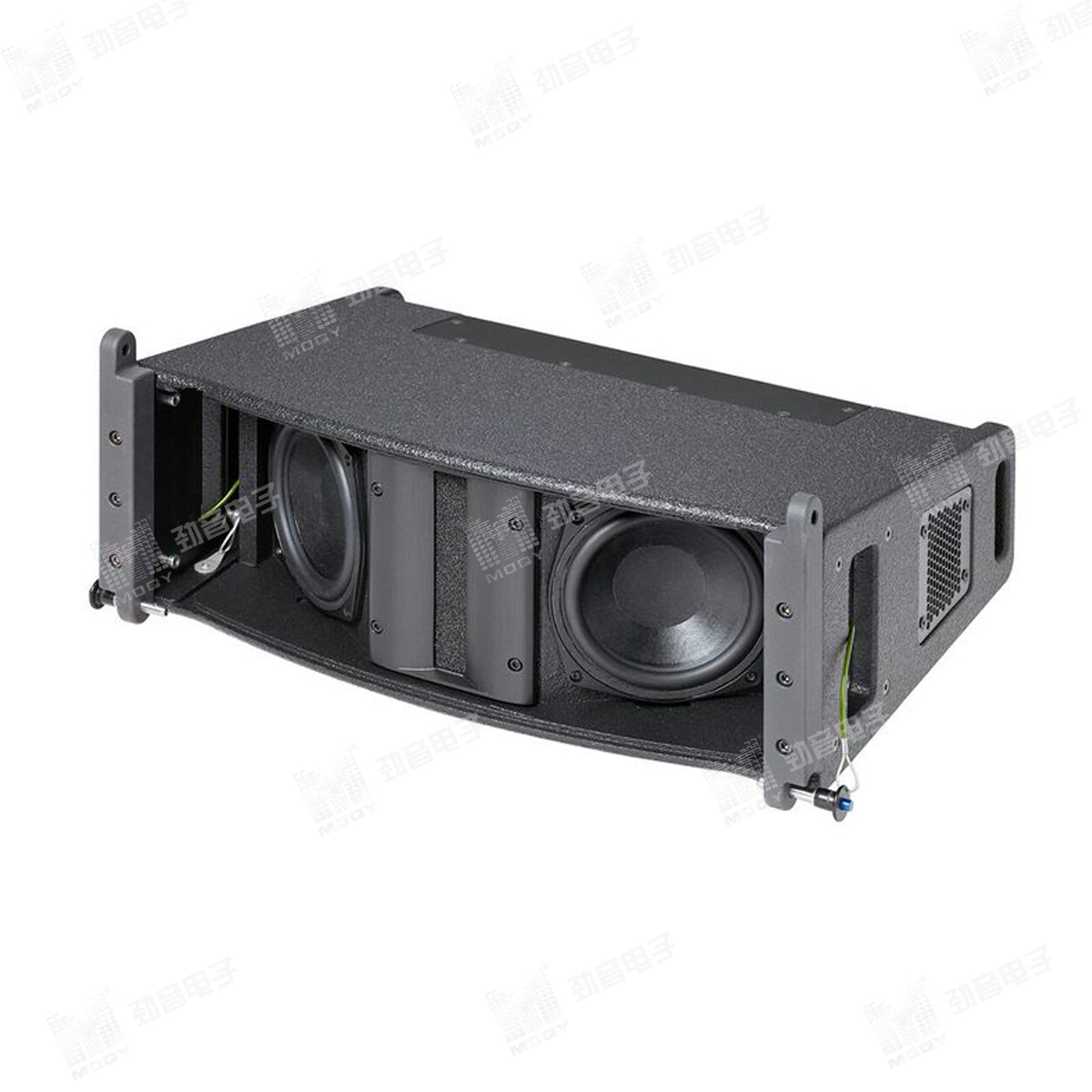

LA-25
LF Unit: 2x5.25" (45mm) Driver Unit
HF Unit: 1x34mm Driver Unit
Power: 300W(RMS) 600W (PEAK)
Frequency Response: 55Hz-20KHz (±3dB)
Sensitivity: 97dB / 1W / 1M
Max. SPL: 124dB (RMS) 130dB (PEAK)
Nominal Impedance: 8Ω
Cover Range: 100°x N° (H x V)
Hanging Hardware: Bracket
Handle: 2
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density poplar plywood
Weight: 21kg
Size(W×D×H) : 166x358x456mm
LA-25S
LF Unit: 1x12" (75mm) Line Array Subwoofer Unit
Power: 400W (RMS) 800W (PEAK)
Frequency Response: 35Hz-3000Hz (±3dB)
Sensitivity: 98dB / 1W / 1M
Max. SPL: 118dB (RMS) 124dB (PEAK)
Nominal Impedance: 8Ω
Hanging Hardware: Bracket
Handle: 2
Connector: 2×NL4 Socket, +1, -1
Box Material: CNC manufacturing, high density poplar plywood
Weight: 40kg
Size(W×D×H) : 360x446x456mm
